What Does a Topographic Survey Show Before Land Development?

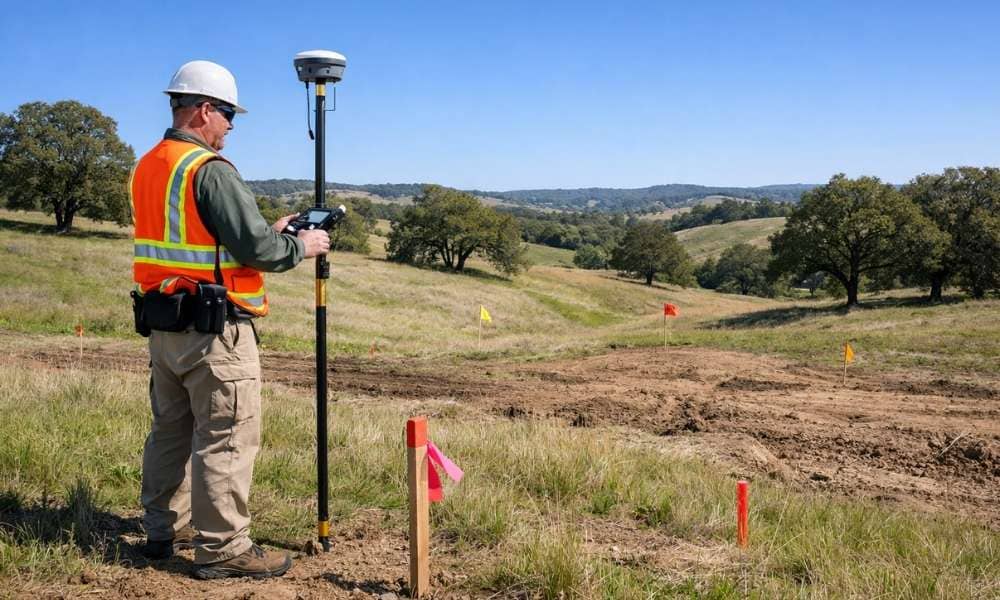

Land surveyor performing a topographic survey before land development to measure elevations, terrain, and existing site features

Before any dirt gets moved, a development team needs to know what the land looks like. Not in a photo. In real life.

A topographic survey shows the true shape of the land. It maps the height changes, the slopes, and the things sitting on top of the ground. In Virginia, land can go from flat to hilly within a short drive. That makes this map very useful.

This article explains what a topographic survey shows. It also explains why builders and designers rely on it so much before work begins.

Skipping this step can cost real time and money later. A design built on guesswork often needs changes once the true shape of the land is known. A topographic survey helps a project avoid that from the start.

Hidden Elevation Changes That Influence Site Design

Land often looks flat, but it usually isn’t. A lot might drop several feet from one side to the other. A topographic survey measures these height changes across the whole site.

This matters a lot. Elevation shapes early design choices. It affects where a building can go. It affects the type of foundation needed. It even affects where parking spots can fit.

Elevation details a topographic survey usually shows:

  • Height points spaced across the site
  • Contour lines that show slope and shape
  • High points and low points on the land
  • Height differences between the site and nearby roads

Without this data, a design team is just guessing. With it, they can place a building where the ground truly supports it.

Existing Surface Features That May Affect Construction Planning

A topographic survey also records what sits on the land right now. This includes trees, fences, poles, walls, and buildings.

This matters early on. These features can shape what gets built and where. A group of large trees may need to stay in place. An old fence may sit closer to the property line than people think. A utility pole may block a planned driveway.

Surface features often shown on a topographic survey:

  • Large trees, based on trunk size
  • Existing buildings and sheds
  • Fences, walls, and paved areas
  • Utility poles and visible pipes or manholes
  • Wells, septic tanks, or other site equipment

Finding these details early saves time. Nobody wants to redesign a building after learning a protected tree sits right where the entrance was planned.

Why Drainage Patterns Matter Before Any Ground Is Disturbed

Water always flows downhill. A topographic survey shows exactly how water moves across a site today. This matters a lot before any grading starts.

Virginia has thick, clay-heavy soil in many areas. This makes drainage planning even more important. Bad drainage choices can lead to flooding. They can also cause erosion or damage to nearby land.

Drainage details a topographic survey can reveal:

  • Low spots where water tends to collect
  • Existing ditches or drainage paths
  • The direction water flows across the land
  • Spots where runoff currently leaves the site

Design teams use this information to plan for water the right way. Ignoring these patterns often leads to costly problems after the work is done.

How Design Professionals Turn Survey Data Into Development Decisions

Once the survey is done, engineers and architects use it as their starting point. Almost every part of the design builds on this data.

How different professionals use the data:

  1. Civil engineers use it to plan grading and drainage
  2. Architects use it to match building design to the land’s slope
  3. Land planners use it to place roads, parking, and open space
  4. Landscape architects use it to plan trees and greenery around the site

This is why a topographic survey usually comes first. Every professional on the project needs the same accurate map to work from.

Situations Where Updated Topographic Information Becomes Essential

A topographic survey is not always a one-time thing. Some situations call for a new one, even if an older survey already exists.

Situations that often call for a new topographic survey:

  • A long time has passed since the last survey
  • Grading or building work has changed the site since the last survey
  • A new phase of the project covers a different part of the land
  • Local rules require fresh data for a permit
  • The old survey doesn’t match what you see on site today

Old elevation data creates risk. A grading plan built on outdated numbers may not match the real land. That can lead to costly changes mid-project. Checking that the survey still matches the site is a small step that avoids big problems later.

A topographic survey gives a development team the real shape of the land before big decisions get made. It replaces guesswork with real, measured facts. That is exactly what good site planning needs.
